Sun solaris Black Box S20 Data Center

Most Powerful DATA CENTER in performance , cooling , networking ,security and even in Physical Design !

Sun Modular Datacenter S20, widely known as Project Blackbox, is revolutionizing how companies, universities, and governments add datacenter capacity. With its high-density, eco-friendly design that enables rapid deployment, game-changing economics, and unimaginable mobility, Sun Modular Datacenter is reaching new customers world-wide who have been waiting for just this type of break-through solution.

Dimensions and Weight
6.06m (20 feet)
2.44m (8 feet)
2.59m (8 feet 6 inches)
Shipping Weight (no payload)
<8,165 name="Anchor2">

Rack Quantity

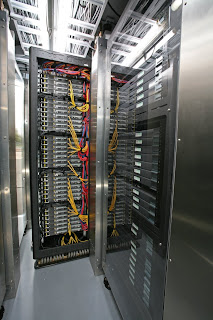

8 racks: 7 for payload and 1 for network and the Sun Modular Datacenter control equipment
Rack Units (RU)
40 RU per rack for 320 RU total
280 RU available for IT equipment
25 RU available for network equipment
15 RU reserved for the Sun Modular Datacenter monitoring, management, and control equipment
Rack Dimensions
EIA/ANSI (RETMA) standard 19" EIA RS-310-D
Height (usable)
177.9 cm (70 inches)
Depth (usable)
78.1cm (30.75 inches) *Includes cable, bezel, & handle depth
Width (usable)
48.26 cm (19 inches)
Load capacity per rack
862 kg (1900 lb.)
Power per rack
12.5kW standard per rack; 25kW "high power option" for seven payload racks

Power Options
Low Voltage Configuration
North America/JapanInput Voltage: 110/190 - 127/220 VAC, 3 Phase, 50/60 Hz, 600a per panelInternally Distributed Voltage: 110 - 127 VAC, 1 Phase and 190-220 VAC, 3 Phase, 50/60 Hz (Internal single phase not accessible)
High Voltage Configuration
InternationalInput Voltage: 220/380 - 240/415 VAC, 3 Phase, 50/60 Hz, 300a per panelInternally Distributed Voltage: 220-240 VAC, 1 Phase and 220/380 - 240/415 VAC, 3 Phase, 50/60 Hz (Internal single phase not accessible)

External Network Connections
Two network panels supported (choice of one option for each side)
Network Panel Options:
RJ-45 network panel (8 x RJ-45 connectors)
LC Fibre network panel (8 x LC fibre connectors - single or multi mode)
RJ-45/LC Fibre network panel (4 x RJ-45 and 4 x LC fibre - single or multi mode)
Bulk cable pass-through panel

External temperature and humidity deployment range (doors closed)
-29°C to 54°C (-20°F to 130°F), up to 100% humidity
Internal operating temperature and humidity (doors closed)
10°C to 35°C (50°F to 95°F) and 20% to 80% relative humidity (RH), noncondensing
3048 m (10,000 ft) or lower depending on payload maximum
56.0 dBA (external at 2 m)78.5 dBA (internal at nominal load)

Sun servers
Sun Fire™ E2900, Sun Fire T1000, Sun Fire T2000, Sun Fire T5120, Sun Fire T5220, Sun Fire V125,Sun Fire V210, Sun Fire V215, Sun Fire V245, Sun Fire V440, Sun Fire V445, Sun Fire V480, Sun Fire V490, Sun Fire V1280, Sun Fire X2100 M2, Sun Fire X2200 M2, Sun Fire X4100, Sun Fire X4100 M2, Sun Fire X4150, Sun Fire X4200, Sun Fire X4200 M2, Sun Fire X4450, Sun Fire X4500, Sun Fire X4600 M2, Sun Blade™ 6000, Sun Blade 8000, and Sun Blade 8000 P servers

Sun storage
Sun StorageTek™ 2530, Sun StorageTek 2540, Sun StorageTek 3120, Sun StorageTek 3320,
Sun StorageTek 3510, Sun StorageTek 5310, Sun StorageTek 5320, Sun StorageTek 6130, Sun
StorageTek 6140, Sun StorageTek 6540, Sun StorageTek CSM200, Sun StorageTek D240, and
StorageTek DAT 72 storage

1 comment:

Anonymous said...

One Project Blackbox could provide 7 Terabytes of Memory and also One Project Blackbox could host a configuration that would put it among the top 200 fastest supercomputers globally.

Do you know what Makes it Unique?

-Deployable in 1/10th the time it takes to design, build and deploy a traditional datacentre.
A fully configured (and configurable) virtualized datacentre housed in a standard 20' shipping container.
Ability to configure mix of servers, storage, software and networking, including Solaris, Sun Fire and x64 systems.
Packs more racks tighter than possible in a traditional datacentre.
3 times the computing power for equivalent space.
Integrated and centralized state-of-the-art cooling, networking and power distribution.

Fans and Water-cooled Heat Exchanger provide in-circuit, energy-efficient water cooling that is 20% more efficient.

Simple external hookup: chilled water, AC power, networking.

Integrated de-humidifier, sensors, alarms, GPS.

Floor and ceiling shock absorption system and Top Lock Pin protect installed servers for easier transport using standard shipping methods.Front and rear doors, central service aisle and slide mechanism for maintenance.

Single end-to-end solution ownership, service and support.

Ability to relocate compute assets near low-power sources to save up to $350,000/year on power costs!

Several patents are pending on Project Blackbox, from the general system and installed rack designs, to various aspects of the highly efficient cooling systems, including its environmental monitoring system that combine to deliver breakthrough economics and energy efficiency.
